GV-MDR3400

GV-MDR3400

3MP H.264 WDR Pro Mini Fixed Rugged Dome

El minidomo rugerizado GV-MDR3400 es de muy reducido tamaño y dispone de óptica fija con diferentes opciones de lentes. Puede procesar escenas con intensidad de contraste de luces y producir una imagen clara con el WDR Pro incorporado. Está diseñado conforme a la norma de resistencia al vandalismo IK10 y dispone de grado de protección IP67. Es ajustable en 3 ejes (panorámica, inclinación y rotación) y se puede conectar a través de PoE.

CATALOGO

SKU: GV-MDR3400 Categoría: Minidomo

Descripción

Fixed optics: 2,8mm or 3,8mm
1/3.2″ progressive scan CMOS
Dual streams from H.264 and MJPEG
Up to 20 fps at 2048 × 1536
Day and night function (electronic)
Vandal resistance (IK10 for metal casing)
Ingress protection (IP67)
EN50155 compliance for rolling stock applications
Wide temperature tolerance (-30 °C ~ 50 °C / -22 °F ~ 122 °F)
3-axis mechanism: pan (-45° ~ +45°), tilt (0° ~ 90°), rotate (0° ~ 360°)
Built-in microphone
Built-in micro SD card slot (SD/SDHC) for local storage
Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
PoE (IEEE 802.3af)
Wide Dynamic Range Pro (WDR Pro)
2D noise reduction
Defog
Motion detection
Tampering alarm
Privacy mask
Text overlay
IP address filtering
Supports iPhone, iPad, Android & 3GPP
31 languages on Web interface
ONVIF (Profile S) conformant

Notas:

Las especificaciones están sujetas a cambios sin previo aviso.

Accesorios

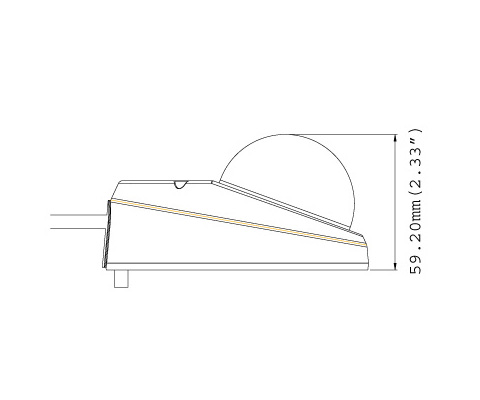

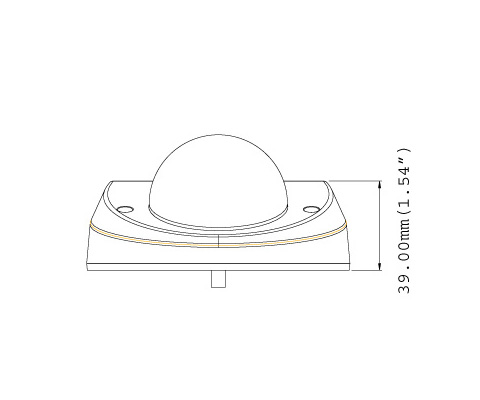

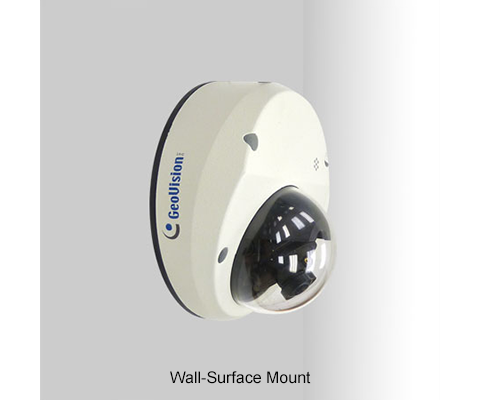

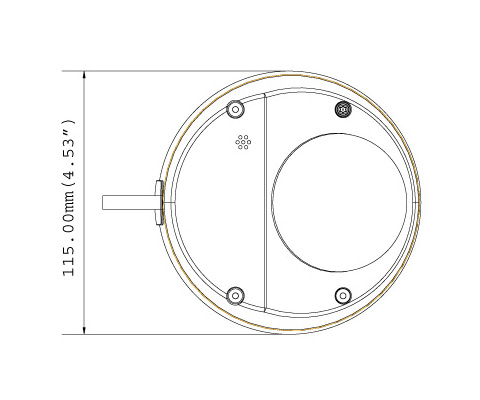

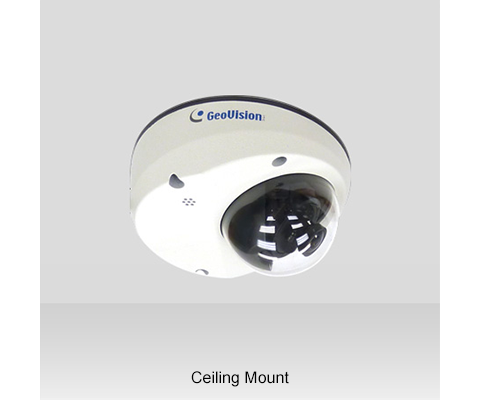

Medidas e Instalación

Note:

Specifications are subject to change without notice.

Packing

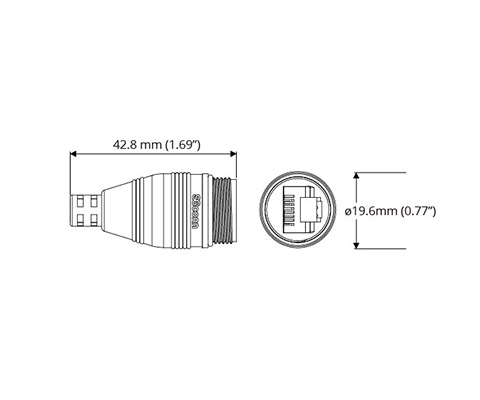

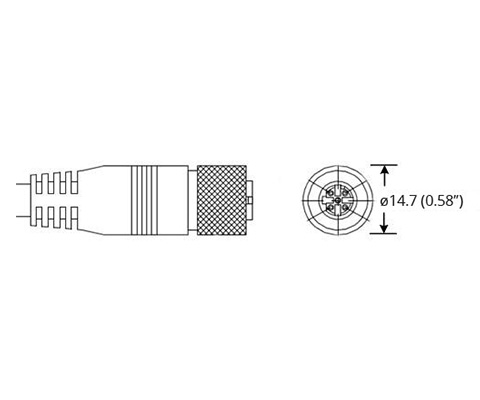

Mini Fixed Rugged Dome with 2 options for its LAN connector (connector for motor vehicles or for general use)
Torx Wrench
Self Tapping Screw x 2
Screw Anchor x 2
Cable stopper
Cable Connector
Installation sticker
Silica gel bag x 2
Ferrite core for vehicle installation
Adhesive tape x 2
Download Guide
Warranty Card

Note:

Specifications are subject to change without notice.
